Laser TV Configurator | Matte Premium Cabinet

6.300,00 €

Taxes included.

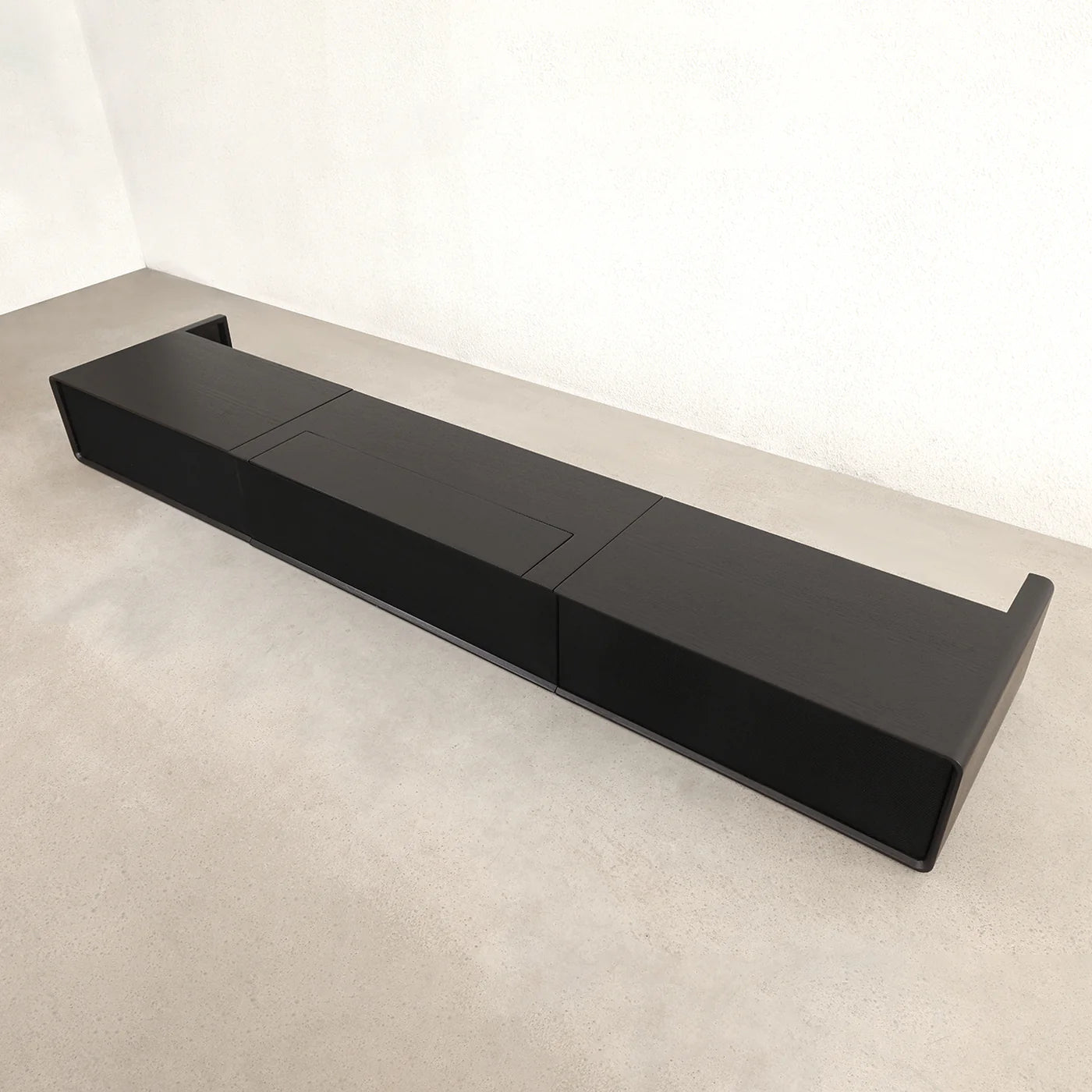

The Shore ROLATV Rollable Wood Grain Laser TV Cabinet is a premium, fully pre-assembled cabinet designed for modern Laser TV setups with an ultra-short-throw projector and a motorized retractable projection screen. It combines an elegant wood design, motorized mechanisms, integrated storage space, and acoustically transparent panels so that the entire setup feels like a natural part of the interior rather than a technical compromise.

Canvas size 100" screen 120" screen

Projector Without a projector FORMOVIE Theater Premium FORMOVIE Cinema Edge Awol Vision Aetherion Pro AWOL Vision Aetherion Max

Motorized pull-out system – the cabinet is designed for convenient automatic extension and retraction of the projection system.

Integrated space for UST projector – the open front compartment is adapted for ultra-short-throw projectors, allowing you to create a large-format home cinema without a traditional television.

Motorized drawer load capacity of up to 30 kg – the robust construction allows for use with larger and more powerful UST projectors.

Acoustically transparent panels – the side sections of the cabinet are designed to house speakers without the need to move them outside the assembly.

Generous storage space – the side storage compartments provide space for AV equipment, players, a router, or other accessories.

Integrated cable management – internal cable routing helps keep the setup clean and free of visible cables.

Silent cooling – an integrated high-efficiency fan helps dissipate heat from the projector and electronics.

Soft-close doors – cushioned closing increases comfort for everyday use.

Solid wood + veneer – the material design is focused on both higher durability and a premium look.

No assembly required – the cabinet is delivered pre-assembled, eliminating the tedious task of putting individual parts together.

Available versions for 100" and 120" setups – you can choose dimensions based on the size of your planned projection screen.

Product: Shore ROLATV Rollable Wood Grain Laser TV Cabinet
Type: motorized Laser TV cabinet
Intended for: UST projector + motorized retractable projection screen
Available sizes: 100" / 120"

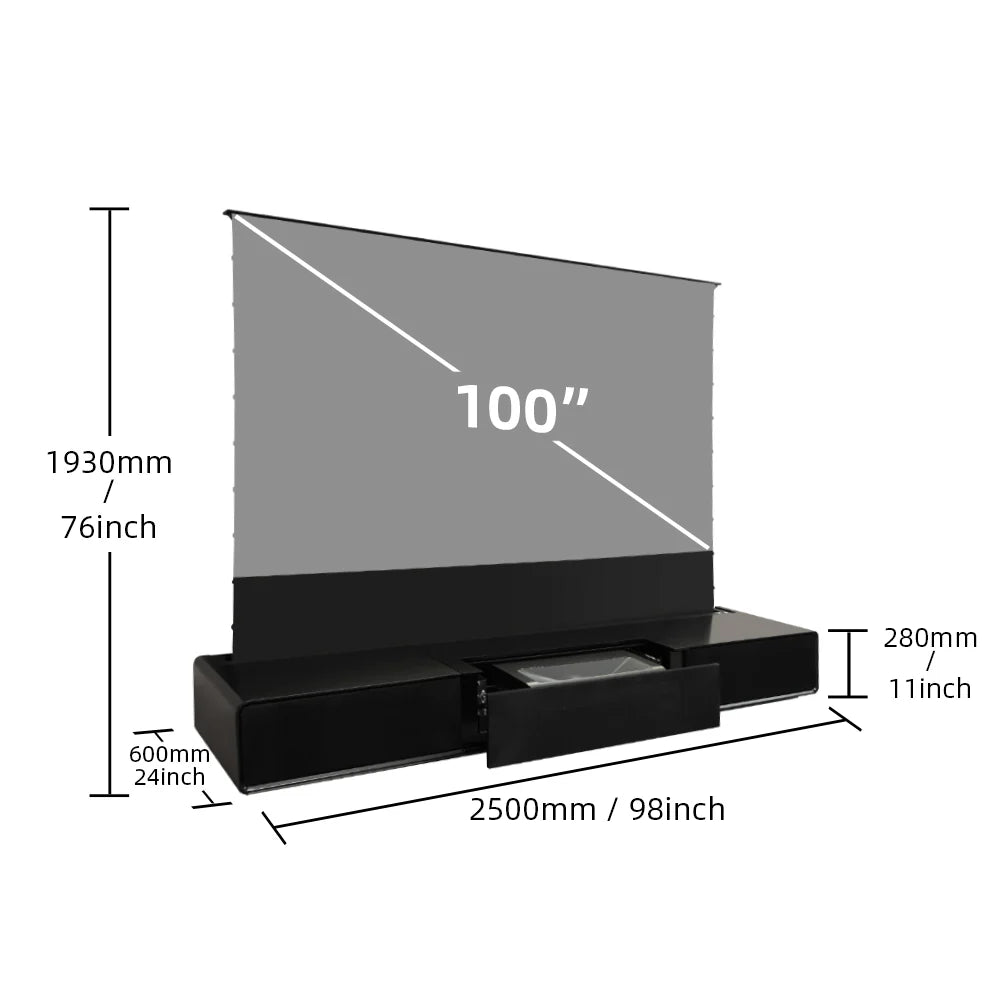

Dimensions of 100" version: 100 × 24 × 11 in
Dimensions of 120" version: 120 × 24 × 11 in
Maximum load capacity of motorized drawer: 30 kg
Material: solid wood + veneer
Front panel: perforated
Acoustic panels: yes, designed for speakers
Storage space: side storage sections
Cable management: integrated
Cooling: high-efficiency quiet fan
Doors: soft-close
Assembly: product is delivered pre-assembled
Customization: yes, upon request
Warranty: 1 year according to manufacturer's terms

ALR projection screen
100" / 120"

Motorized projector lift (max 30 kg)

Automatic saving of projector distance

Quiet brushless motor

Compatibility with 99% UST projectors

Integrated cooling + perforated cover

Hidden cable management

Premium materials (MDF / wood / veneer)

Technical
specifications

Width: 2500 mm
Height: 750 mm
Depth: 373 mm
Construction: High-Density MDF / Solid Wood + Veneer
Finish: Matte Black / Matte White / Wood Grain

Width: 895 mm
Height: 217 mm
Depth: 375 mm
Maximum drawer extension: 580 mm
Drawer load capacity: 30 kg
Compatibility: 99% of UST projectors on the market

Middle inner cabinet: 345 mm width, 213 mm height, 580 mm depth
Side cabinets: 750 mm (left), 1000 mm (center), 750 mm (right)
Internal partitions: 152 mm, 217 mm, 160 mm (according to the drawing)

Motor type: Brushless stepper motor
Noise level: very quiet operation (stealth operation) — value not numerically specified
Memory function: YES – automatic saving of projector position
Opening: motorized, soft landing
Closing: motorized, automatic retract based on projector
Synchronization with projector: YES – extends when the projector is turned on and retracts after it is turned off

Cooling type: active + passive
Ventilation system: silent cooling fan
Casing: perforated top cover
Airflow: separate airflow for projector and electronics
Dust-proof features: Dust-proof hinge system

Screen type: Floor Rising Screen
Size: 100" or 120"
Technology: ALR (Ambient Light Rejecting)
Panel thickness: 0.4 mm (acoustically transparent)
Mechanism: motorized extraction from cabinet

Cable management: YES — integrated system
Grommets: for HDMI, power supply, LAN, streaming devices
Storage space: side cabinets, central projector drawer, internal partitions

System power supply: 100–240V (standard for motorized systems — PDF does not contain an exact figure)
Control: remote control / automatically synchronized with projector power-on

Warranty: 2 years
Certifications: eco-friendly MDF board, safety standards

Optimized UST projection up to 120"

A new generation of laser home cinema, designed for maximum precision and comfort. A motorized projector lift, stable UST geometry, and large screen sizes up to 120" create a professional result without the need for manual adjustment.

Support for 100" and 120" diagonal screens.

Motorized projector lift (580 mm travel).

Automatic memory of the ideal projection distance.

Silent brushless motor without vibrations.

Precise UST geometry without image shift.

Compatibility with 99% of UST projectors (4K laser).

Extends with one touch

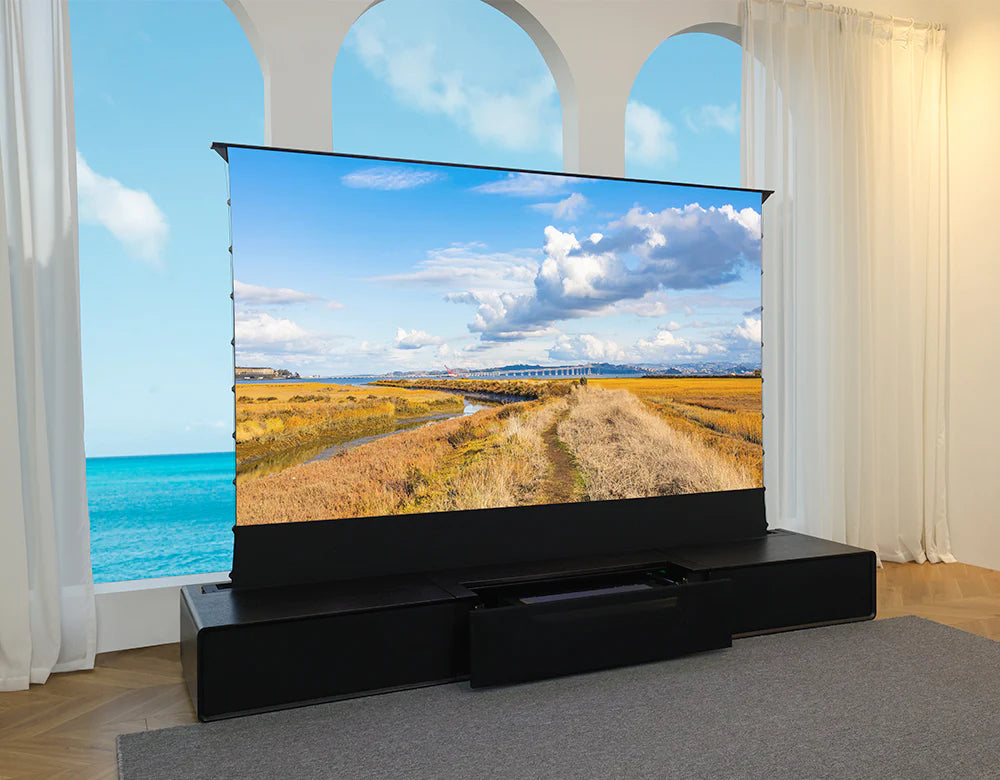

The ALR screen is fully integrated into the cabinet and operated by a quiet motorized mechanism. When projection is turned on, it smoothly extends into the ideal position and automatically retracts when finished.

Motorized Floor Rising screen for 100" / 120" projection.

Silent and stable pull-out with a precise stop.

Automatic retraction after turning off the projector.

ALR surface that maintains contrast even in ambient light.

Storage space and cable management

The cabinet is designed to securely house all equipment while keeping the interior clean and functional. The internal layout provides space for devices, hidden cable routing, and optimal ventilation even when fully equipped.

Side cabinets for accessories, consoles, and network devices.

Integrated cable routing that hides all cables inside the cabinet.

Grommets for HDMI, power, LAN, and streaming boxes.

Optimized airflow that prevents equipment from overheating.

Optimized cooling and construction

The cabinet is designed to maintain the projector and electronics at an ideal operating temperature. It combines active cooling, precisely engineered ventilation channels, and a robust material design that ensures stability, quiet operation, and a long system lifespan.
